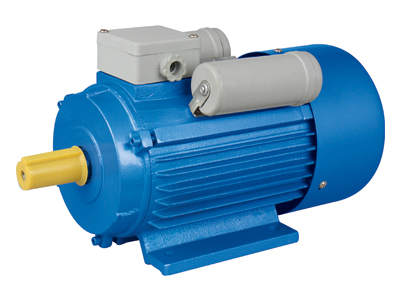

YC 系列大馬力單相電動機械適用于驅動小型車床、水泵,對只有單相電源的家庭、作坊尤為適用。該系列電動機械采用先進技術設計,使用優質材料制造,具有外形美觀、性能先進、維護方便、運行可靠的特點,符合IEC標準的有關規定。
YC系列電動機為全封閉扇冷式,輸出功率3HP及以下采用電容起動,在額定電壓下50HZ時起動動力矩大于3倍,60HZ時大于2.75倍,輸出功率4HP及以上采用電容起動、運轉,集中了起動轉矩大、動轉平穩、溫升低、噪聲小、過載能力強等優點。
使用條件：
環境溫度： -15℃≤θ≤40℃
海拔：不超過1000m 額定電壓：± 5%
| 型 號 |
功 率 |
電 流
(A) |
功率因素 |
效 率(%) |
轉 速
(r/min) |
堵轉轉矩
額定轉矩 |
堵轉電流
額定電流 |
大轉矩
額定轉矩 |
| kW |
HP |
| YC711-2 |
0.18 |
1/4 |
1.9 |
0.7 |
63 |
2800 |
3 |
6.5 |
2 |
| YC712-2 |
0.25 |
1/3 |
2.4 |
0.72 |
65 |
2800 |
3 |
6.5 |
2 |
| YC80A-2 |
0.37 |
1/2 |
3.5 |
0.74 |
66 |
2840 |
3 |
6.5 |
2 |
| YC80B-2 |
0.55 |
3/4 |
5.04 |
0.74 |
67 |
2850 |
3 |
6.5 |
2 |
| YC80C-2 |
0.75 |
1 |
6.68 |
0.75 |
68 |
2850 |
3 |
6.5 |
2 |
| YC90S-2 |
1.1 |
1.5 |
8.93 |
0.8 |
70 |
2850 |
2.8 |
7 |
2 |
| YC90L-2 |
1.5 |
2 |
11.4 |
0.82 |
73 |
2870 |
2.8 |
7 |
2 |
| YC100L-2 |
2.2 |
3 |
16.5 |
0.82 |
74 |
2900 |
2.5 |
7 |
2 |
| YC112M1-2 |
3 |
4 |
21.4 |
0.84 |
76 |
2900 |
2.2 |
7 |
2 |
| YC112M2-2 |
3.7 |
5 |
24.8 |
0.86 |
79 |
2900 |
2.2 |
7 |
2 |
| YC711-4 |
0.12 |
1/6 |
1.9 |
0.58 |
48 |
1400 |
3 |
6 |
2 |
| YC712-4 |
0.18 |
1/4 |
2.7 |
0.6 |
50 |
1400 |
3 |
6 |
2 |
| YC80A-4 |
0.25 |
1/3 |
3.52 |
0.62 |
52 |
1400 |
3 |
6 |
2 |
| YC80B-4 |
0.37 |
1/2 |
4.69 |
0.64 |
56 |
1400 |
3 |
6 |
2 |
| YC80C-4 |
0.55 |
3/4 |
6 |
0.65 |
60 |
1400 |
3 |
6 |
2 |
| YC90S-4 |
0.75 |
1 |
7.5 |
0.72 |
63 |
1400 |
2.8 |
6.5 |
2 |
| YC90L-4 |
1.1 |
1.5 |
10.4 |
0.72 |
67 |
1420 |
2.8 |
6.5 |
2 |
| YC100L-4 |
1.5 |
2 |
13 |
0.73 |
72 |
1440 |
2.8 |
6.5 |
2 |
| YC112M-4 |
2.2 |
3 |
18.5 |
0.74 |
73 |
1450 |
2.5 |
6.5 |
2 |
| YC132S1-4 |
3 |
4 |
22.4 |
0.8 |
76 |
1450 |
2.2 |
6.5 |
2 |
| YC132S2-4 |
3.7 |
5 |
26 |
0.82 |
79 |
1450 |
2.2 |
6.5 |
2
|
|

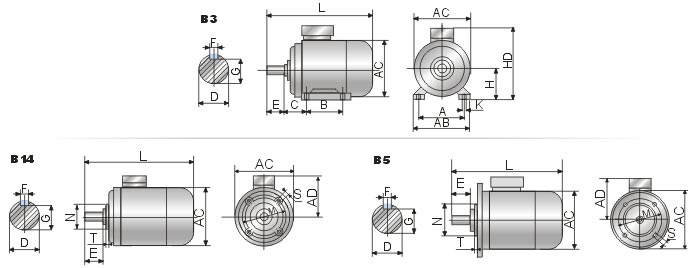

機座號
|
安裝尺寸
|
外形尺寸
|
|
A
|
B
|
C
|
D
|
E
|
F
|
G
|
H
|
K
|
M
|
N
|
P
|
R
|
S
|
T
|
AB
|
AC
|
AD
|
HD
|
L
|
|
71
|
112
|
90
|
45
|
14
|
30
|
5
|
11
|
71
|
7
|
130
|
110
|
160
|
0
|
10
|
3.5
|
145
|
145
|
140
|
180
|
255
|
|
80
|
125
|
100
|
50
|
19
|
40
|
6
|
16
|
80
|
10
|
165
|
130
|
200
|
0
|
12
|
3.5
|
160
|
165
|
150
|
200
|
295
|
|
90S
|
140
|
100
|
56
|
24
|
50
|
8
|
20
|
90
|
10
|
165
|
130
|
200
|
0
|
12
|
3.5
|
180
|
185
|
160
|
240
|
370
|
|
90L
|
140
|
125
|
56
|
24
|
50
|
8
|
20
|
90
|
10
|
165
|
130
|
200
|
0
|
12
|
3.5
|
180
|
185
|
160
|
240
|
400
|
|
100L
|
160
|
140
|
63
|
28
|
60
|
8
|
24
|
100
|
12
|
215
|
180
|
250
|
0
|
15
|
4
|
205
|
220
|
180
|
260
|
430
|
|
112M
|
190
|
140
|
70
|
28
|
60
|
8
|
24
|
112
|
12
|
215
|
180
|
250
|
0
|
15
|
4
|
245
|
250
|
190
|
300
|
455
|
|
132S
|
216
|
140
|
89
|
38
|
80
|
10
|
33
|
132
|
12
|
265
|
230
|
300
|
0
|
15
|
4
|
280
|
290
|
210
|
350
|
525
|
|
132M
|
216
|
178
|
89
|
38
|
80
|
10
|
33
|
132
|
12
|
265
|
230
|
300
|
0
|
15
|
4
|
280
|
290
|
210
|
350
|
553
|
